35 tons Truck crane QY35Q

Adopting special chassis based on HOWO technology platform of our company, QY35 crane is hydraulic drive with full circle swinging telescopic booms. Equipped with EGR engine of CNHTC (EURO-III), the crane has four sections of main lifting booms and one section of jib.With H type outriggers and double cylinders, it can achieve 36 0 slewing lifting. The stretch mode of the lifting boom is in sequence and synchronization, and the hoisting mechanisms are independent drive.

The crane has the following features:

1.  The main performance parameters has reached advanced domestic level, and approached overseas like products.

2.  Adopting hydraulic drive, all mechanisms can be operated with stepless speed regulating steadily and reliably.

3. The boom can stretch within a range of 10.5m to 33m in order and synchronization.

4. The boom is made of high strength steel, HQ700, with main sectional plane of hexagon.

5.  The boom drive mechanism is in the inner arm to increase inner section dimensions and improve strength.

6.  With two offset angles of 15and 30, the trussed type jib is extended and retracted artificially.

7. The crane has a controllable free slipping slewing mechanism.

8. This crane has planetary gear type main and vice lifting mechanism.

9. Equipped with 013.45.1600.001 type slewing bearing made in Xuzhou , this crane has large load capacity and long working life.

10.  Perfect and advanced safety device equipped in this crane can guarantee operation security. The lighting device is convenient for night operation.

11.  Equipped with adjustable seat, PPC operation device and full automatic overload display unit, the operator's cab has an expansive field of view.

12. More selective equipment can be chosen by user, such as heating device, air conditioner, hydraulic pressure oil cooling system,etc.

13.  With compact construction and high traveling speed, the crane is flexible in operation and convenient in maintenance.



Technical Data for Lifting Operation

Max Rated Lifting Capacity

(t)

35

Max Load Moment

(KN m)

1190

Boom Base Section

(m)

10.8

Boom

(m)

33.83

Boom+Jib

(m)

47.8

Lifting Speed 10 ?

(m/min)

17

Siewing Speed

(r/min)

2

Min Turning Radius

(m)

22

Max Travelling Speed

(km/h)

65

Max Gradeability

(%)

22.5

Approach Angle

( )

17

Angle of departure

( )

10.5

Min Clearance

(mm)

230

Wheeibase

(m)

1.450 3.7 1.35

Outrigger Span

(m)

5.4 6.0

Gross Weight

(kg)

34500

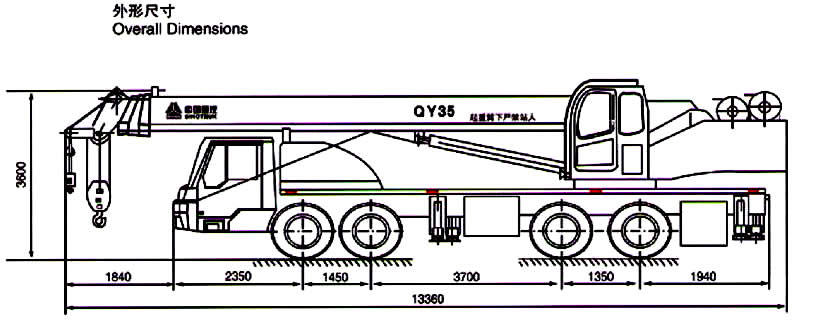

Overall Dimensions(L W H)

(m)

12.96 2.5 3.5

Diesel Model

WD615.93E

Max Power of engine

(kw/rpm)

213/2200

Min Toroue of engine

(N m/rpm)

1160/1100-1600
