Product Specifications : Hydraulic crawler crane

Hydraulic crawler crane QUY35

Product introduction

¡÷ Extendable track frame, easy for main machine to transport

¡÷ Hoisting capacity is powerful;

¡÷ The easily damaged and consumable structural parts are self-made, and maintenance cost is low. The special structure design by us makes maintenance more convenient.

¡÷ Most part of whole crane surface adopts no-dust baked lacquer automatic assemble line painting .

Product Parameters

QUY35 Technical Parameters

Descriptions

Unit

Data

Max. rated lifting capacity

t

35

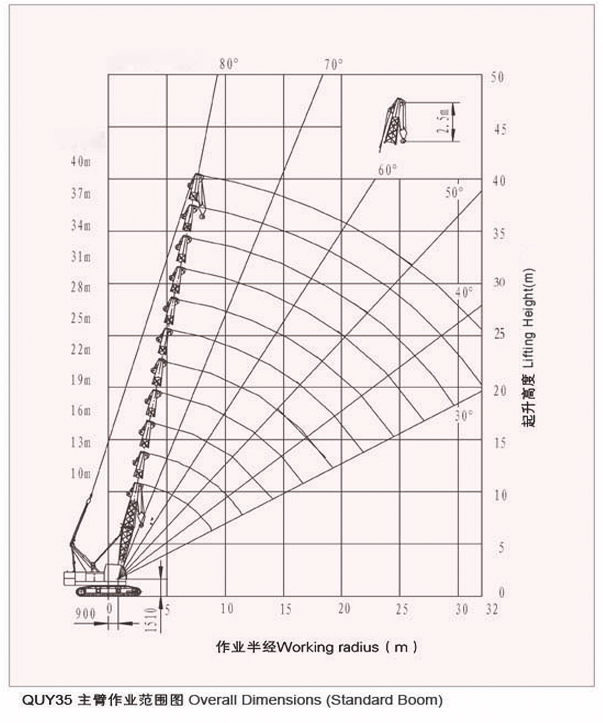

Boom length

m

ʮԠ-40

Length max. combination

m

31+15.25

Boom luffing angle

¡ã

30-80

Rope Hoisting speed

m/min

H62£»L31

Rope lowering seppd

m/min

H62£»L31

Boom up

m/min

64

Boom down

m/min

64

Swing

r/min

*3.7

Travel

km/h

1.4

Gradeability

%

40

Engine output

kW/r/min

128/2000

Counterweight

t

12.1

Weight of the crane (with basic boom and 35 hook)

t

36

Ground pressure

MPa

0.054

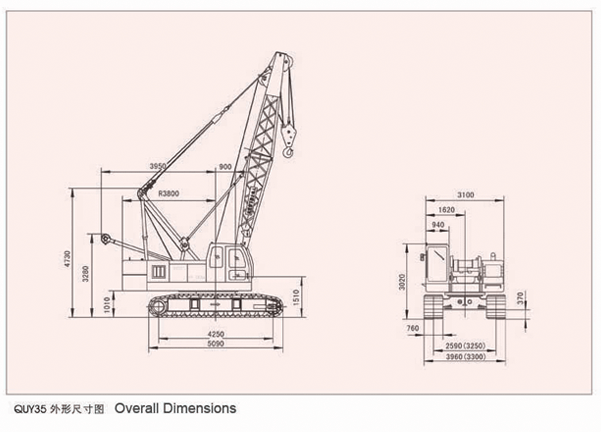

Overall dimensions

mm

6345¡Á3960¡Á3020
