Product Specifications : Hydraulic crawler crane

Hydraulic crawler crane QUY100A

¡÷ Complete working attachments, including luffing jib

¡÷ Concision structure of the whole crane, small swing radius, and suitable to use in narrow environment

¡÷ Main components of power system and hydraulic system are imported from USA, Germany, etc

¡÷ Float and close swing system, makes swing stable with no shock, more convenient to operate

¡÷ The easily damaged and consumable structural parts are self-made, .and special structure design by us makes maintenance more convenient.

¡÷ Main components of pow er system and hydraulic system are imported from USA, Germany, etc.

¡÷ Optional equipped with self-load/unload function, it is easy to assemble/disassemble.

¡÷ The easily damaged and consumable structural parts are self-made, .and special structure design by us makes maintenance more convenient.

¡÷ Most part of whole crane adopts no-dust baked lacquer automatic assemble line painting .

Product Parameters

QUY 100A Technical Parameters

Max. lifting capacity (T)

100

Boom up (m/min)

54

Lifting torque (TM)

5.5¡Á100=550

Boom down  (m/min)

54

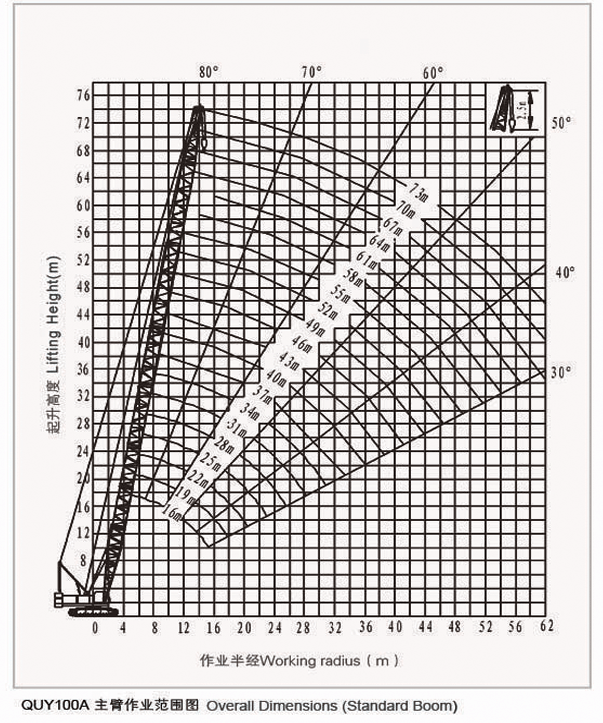

Boom length (M)

16-73

Swing speed (r/min)

0-1.96

Fixed jib (M) (10¡ã-30¡ã)

13-25

Travel (km/h)

0.9-1.3

Max. combination (M)

61+25=86

Gradeability (%)

30

Counterweight (T)

34

Engine output (KW)

Cummins, 209/2000

Weight of the crane (T)

103

Ground pressure (Mpa)

0.07

Hoisting/lowering of main winch (m/min)

High 116/57Low 82/41

Overall dimensions (Length ¡Á Width ¡Á Height) (mm)

8850¡Á3320¡Á3030

Hoisting/lowering of aux. winch (m/min)

High 116/57Low 82/41

Weight for transport (T)

31
