Product Specifications : Hydraulic crawler crane

Hydraulic crawler crane QUY50C

¡÷ Main components of power system and hydraulic system are imported from USA, Germany, etc. Ensure its capability and stability more reliable and safe than the same products

¡÷ Unique function of free fall, saves fuel consumption and boosts work efficiency;

¡÷ Swing float function, making operation more steadily and safety;

¡÷ Telescopic track frame, it is convenient for the main machine to transport

¡÷ The easily damaged and consumable structural parts are self-made, .and special structure design by us , makes maintenance more convenient.

Product Parameters

QUY 50C Technical Parameters

Descriptions

Unit

Data

The engine



6BTA5.9-C17

Engine output and rotation speed

KW/r/min

125 /2000

Rated Lifting torque

t£®m

185

Max. lifting capacity

t

50

Length for boom

m

13¡«52

Length for fixed jib

m

9£®15¡«15.25

Lifting capacity of jib

t

5

Max. combination

m

43+15.25=58.25

Rope speed

Main winch

High 80 Low 40

Aux. winch

High 90 Low 45

Boom up

52

Boom down

52

Swing

r/min

0¡«¡ù3.2

Travel

Km/h

0¡«¡ù1.3

Gradeability

%

40%

Ground pressure

Mpa

0.069

Weight of the crane

t

50 (with basic boom and hook )

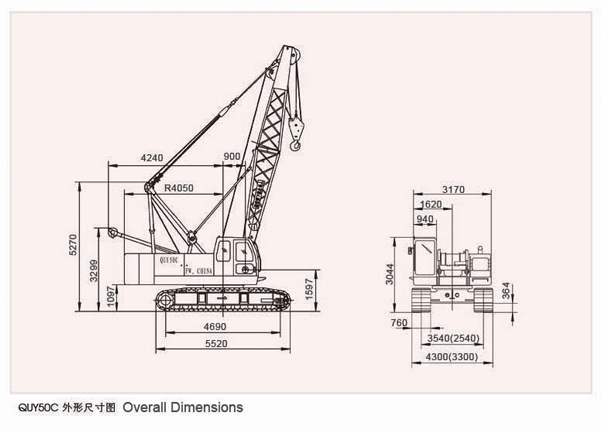

Overall dimensions (Length ¡Á Width ¡Á Height)

mm

6745¡Á3300¡Á3080

Note: ¡ùSpeed may vary with the load.
